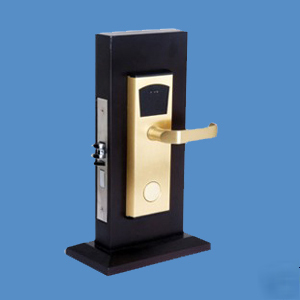

Keyless access electronic comercial id lock BID100RH
It is suitable for hotel, office door, and appartment.
1. Nickel panel and golden sides
2. Double-decked compound lock body structure
3. International advanced grinding artwork
4. Dissociate structure design, and anti force-break from outside
5. Standard electronic lock-core of five latches
6. EM card or EM compatible card for ID card, more cost competitive.
7. Alarm when the door is in half close state to inform you that the door is not in full close.
8. Open door with insufficient power: It will give alarm when the power of battery is insufficient, and still can open door approx.100 times;
Insert key into key-core and turn over to unlock state, meanwhile read EM ID card at sensor area of lock, the lights will all turn on, at the same time the buzzer sounds 5 times, then release key, the buzzer gives one long sound, all lights turn off, the master card made successfully.
Note: All existing user card will be erased after setting up new master card.
Read master card first, meanwhile turn over the handle and release it, the lights will turn on and run 40times anticlockwise, during this time read new cards, which set as user cards.
When the square tongue is inside, the card set as normal user card, if the square tongue is outside, the card set as urgency card. Note Capacity is 50 EM cards.
3 Cancel User Card or Modify User Card
Read master card, meanwhile turn over the handle and release it, the lights will turn on and run 40times anticlockwise, during this time read the cards, when the square tongue is inside it will change into normal user card, if the square tongue is outside it will change into urgency card, press the tilted tongue, the card will be canceled.
When your turn the square tongue out, the lock is set as don t disturb state, if there is a normal user card reading, the lock will alarm in jingle bell sounds green light and white light will turn on ,but the urgency card could open the lock.
Read user card (not master card), press the handle for 2s, the lights turn on and run anticlockwise meanwhile buzzer beeps, 5 times beeps read card once again, the lights will turn on completely, and buzzer gives one long sound, the lock set as passage state. You might open room without reading card.
Press the back handle for 2s, the lights will turn on and run anticlockwise, meanwhile the buzzer beeps, 5times later all lights turn on, and buzzer give a long sound, the lock quit from passage state successfully.
7 Setup &Unfreeze Restrict State
Read the master card and press the handle, don t release it until the buzzer gives 5 sounds, during this time read the card , and the lights will turn on completely, the buzzer gives one sound again, lock is set as restrict state. Once again above operation, the lock will quit restrict state.
When the lock is not full closed, it will alarm every 3s, meanwhile the blue indicator lights, alarm for 20times or
the door is closed completely it will stop.
The lock power supply method is 4 pieces 5Alkaline Battery. When you read card to open, the red and blue lights flash 4times meanwhile alarming if the battery is down to 4.5V. The lock could be open 50 to 100times since the low voltage alarming, it s better to change the battery in time.
Note: zinc-manganese battery is not good to use, the leaking will damage lock. Please choose 5Alkaline Battery.
1.The thickness of door: 40-55mm;
2.Power supply: 4 LR6(AM3, AA)/1.5V alkaline batteries; Static Current 20uA Action Average Current 50mA Static Consume 0.066 milliwatt
3.Ambient temperature: -40C-70C
http:// /fta_images/lock/card_unlock.jpghttp:// /fta_images/lock/key_unlock.jpg
1) One DIB100-T right hand lock retail box
