Hmi plc operator interface w software and manuals eaton

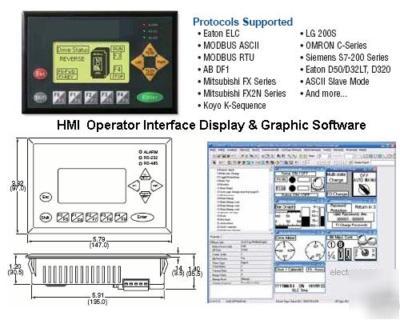

HMI GRAPHIC OPERATOR INTERFACE
HMI panel, Software with electronic manual included
EATON ELC Graphic Panel, 160 x 32 pixels,
Additional Specifications and support from the manufacturer
* Large 64 pixel vertical display height
* 256KB flash ROM program memory
* Over 30 control and display objects including bitmap graphics
* 20 PLC/Controller protocol drivers AB, Modbus, Mitsubishi, Siemens
* COM1: RS-232 (9 PIN D-SUB male, 4800 bps 115200 bps)
* COM2: RS-485/RS-422 (5-Pin Removal Terminal, 4800 bps 115200 bps)
* Input power: 24 VDC (20.4VDC~28.8VDC) ( -15% to +20%) 125mA max
* ASCII characters library including European fonts
* Configurable backlight brightness and contrast
* ALARM Indication LEDs power on indication, flash for comm. error or other alarm, and programmable for special indication
* Safety Approval (Waterproof from Front) IP65 / NEMA 4
* Agency Approvals: UL / cUL (Class 1 Div 2 for Hazardous Locations) / CE
* 2 Year Warranty, Manufactured by Eaton
* Graphic Software and RS232 cable included
Programming software EATON ELC-GP, for Windows XP, Vista or Windows 7, includes CD-ROM and manual
* Static and dynamic text displays with scalable font sizes
* Numeric entry and display with configurable decimal point, leading zeros, signed values
* Full library of static and dynamic bitmaps for switches, buttons, indicators, and symbols or create your own
* Specialty objects for bar graphs, meters, multistate displays, clock/calendar and trend curves
* Windows XP, Vista or Windows 7 compatible, 23MB free hard disk space.
