19 5/8"/27 1/2" X116" victor "gap-type" eng lathe 25884

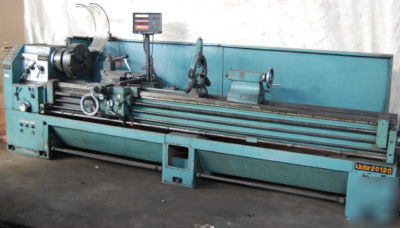

19 5/8"/27 1/2" x 116" VICTOR "GAP-TYPE" ENGINE LATHE
New Approx. 1988 , Serial No 714001, Model 20120,
Hole Thru Spindle...................... 3 1/8"
Swing Over Bed Ways.................... 19 5/8"
Swing thru Gap......................... 27 1/2"
Swing Over Cross-Slide................. 11 1/2"
Distance Between Centers............... 116"
Spindle Nose........................... D1-8
(16) Spindle Speeds, Range............. 31 to 1500 RPM
Carriage Longitudinal Feeds............ .0033 to .0234 IPR
Cross-Slide Cross Feeds................ .0016 to .0108 IPR
Thread Changes, Range.................. 4 to 56 TPI
Metric Thread Changes, Range........... 0.25 to 6 MM
Main Motor, Horsepower................. 10 HP
Floor Space Required, L x D............ 13'4" x 2'10"
Overall Height......................... 3'11"
Weight, Approximately.................. 5790 LBS
