#9957 - mori seiki zl-25MC/1000 5-axis turning center

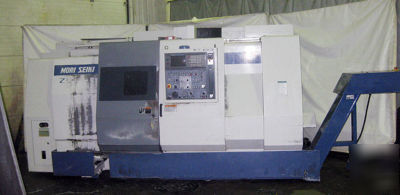

MORI SEIKI ZL-25MC/1000 5-AXIS TURNING CENTER
Maximum turning diameter 13.39"
X-Axis travel, Turret #1 11.3"
Z-Axis travel, Turret #1 42.9"
Z-Axis travel, Turret #2 42.09"

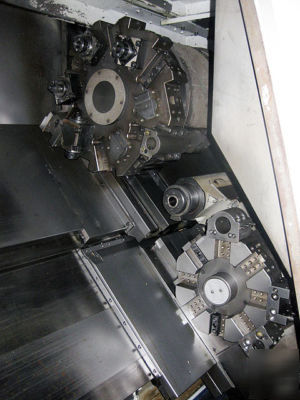

Upper turret tool: 12 (6 live tool positions)
Lower turret tools: 8 (No live stations)
Shank height for square tools 1"
Shank diameter for boring bar 2"
Turret index time .7 Seconds per station
Live tools speeds 80 to 2000 RPM
Rapid feed rate, X-Axis 472.4 IPM
Rapid feed rate, Z-Axis 590.6 IPM
Cutting feed rate per revolution, X-Axis .0001" to 9.9"
Cutting feed rate per revolution, Z-Axis .0001" to 9.9"
Jog feed rate, X & Z Axis 0 to 50 IPM
Tailstock quill taper #5 Morse
Machine: 203" L-R x 84" F-B 84"H
Chip conveyor: 106" L-R x 41" F-B 55" H
Upper turret live full C-axis spindle tooling
Full length chip conveyor with right side exit
Tool presetter for front and rear turret
All available manuals for lathe
