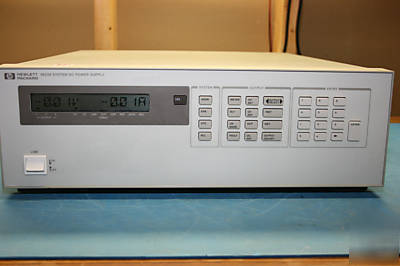

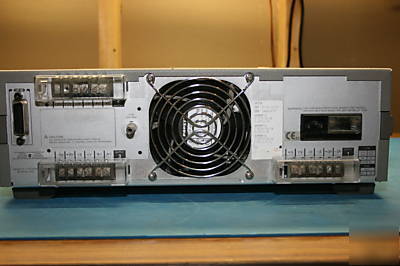

Hp agilent 6623A power supply calibrated with warranty
Unit comes with a 30 day warranty, Fresh Calibration
Unit is in Excellent Condition
* Two (2) 40W Outputs, One (1) 80W Output
* Low-range Volts, Amps: 0 to 7V, 0 to 5A
* High-range Volts, Amps: 0 to 20V, 0 to 2A
* Low-range Volts, Amps: 0 to 20V, 0 to 2A
* High-range Volts, Amps: 0 to 50V, 0 to 0.8A
* Low-range Volts, Amps: 0 to 7V, 0 to 10A
* High-range Volts, Amps: 0 to 20V, 0 to 4A
Voltage: 19 mV, + 0.06%; 50 mV, + 0.06%; 19 mV, + 0.06%
Current: 50 mA, + 0.16%; 20 mA, + 0.16%; 100 mA, + 0.16%
Constant voltage rms: 500 V
Voltage: 20 mV, + 0.05%; 50 mV, + 0.05%; 20 mV, + 0.05%
+Current: 10 mA, + 0.1%; 4 mA, + 0.1%; 20 mA, + 0.1%
-Current: 25 mA, + 0.2%; 8 mA, + 0.2%; 50 mA, + 0.2%
*************************************************************************************************************************************
************************************************************************************************************************************
Midwest ATE stands apart from other organizations that sell refurbished or used electronic test and measurement equipment.
Warranty is void if tamper seals are broken. Please see detailed description for product warranty timeframe.
International orders are payable only by Wire transfer
Contact details: If you have questions, call at Midwest ATE at (***)420-4204.
