Hot air rework station plc control lk-T6

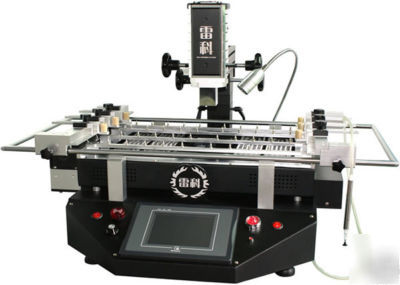

Hot Air Rework Station PLC Control LK-T6
Dimensions 720mm*540mm*520mm .
This BGA Rework Station is designed for the repairing of PCB such as computer , notebook , XBOX-360 , Mobile phones, digital camera, MP4 / 5, routers, etc .
This BGA Rework Station can rework double-layer BGA chip , After heating , solder will not come out from the double-layer BGA chip .
This Rework station can rework CPU socket . and it can rework a variety of slots too .
The standard model can store 20 temperature curves , each temperature curve can divid into 10 Heating and 10 constant , you can expand unlimitedly if you need . now , we recommend one of the most simple and most reliable temperature curve: only one heating and one constant .
It is assembled with a precise temperature controller , only 1 degree temperature error value .
This Rework Station is designed to be one infrared heating and two hot-air heating .
The top part and the middle of the bottom part are hot-air heating methods .
Around the bottom part is infrared , it can heat PCB to prevent deformation .
This BGA Rework Station takes about 2-4 minutes desoldering a chip .
The top heating head can move freely , back and forth , left and right , up and down , rotation .
The fixture for PCB is very good , even a complex structure PCB can place on it horizontally and steadily .
It has been assembled a powerful horizontal fan, PCB can be quickly cooled .
It has been assembled a vacuum suction pen, and the suction pen can take off BGA chips .
Infrared heating components can be individually controlled .
It is suitable for PCB: Maximum 450mm*550mm
It has four air nozzles: 42mm*42mm , 35.5mm*35.5mm , 28mm*28mm , 22.5mm*22.5mm .
The man-machine interface is a touch screen , PLC is used for the controller .
Temperature curves can be displayed on the touch screen .
