8" x 24" thompson "f" hyd-feed horiz-spdl surf grinder

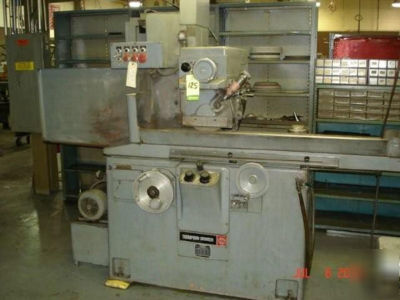

8" x 24" THOMPSON "F" HYDRAULIC-FEED
New 1978, Serial No 088-2F783087-100984, Model 2F
8" x 24" Permanent Magnetic Chuck
Above-Wheel Dresser - Bijur Lubrication System
Power Head Elevation - Coolant System (Built-In)
Height Under 12" Grinding Wheel........ 12"
Table Longitudinal Travel.............. 29"
Wheelhead Cross Travel................. 9"
Grinding Wheel Diameter, Standard...... 12"
Grinding Wheel Surface-Feet-Minute..... 5400 SFM
Grinding Spindle Speed................. 1800 RPM
Table Longitudinal Feeds, Range........ 5 to 75 FPM
Wheelhead Cross-Feeds, Automatic....... .010 to 3/8 IPR
Wheelhead Cross-Feeds Truing, Minimum.. 6 IPM
Wheelhead Cross-Feed Rapid Traverse.... 20 FPM
Grinding Wheel Spindle Motor........... 3 HP/1800 RPM
Hydraulic System Motor................. 1.5 HP/1200 RPM
Power Elevation Motor.................. 1/3 HP/1800 RPM
Floor Space Required, L x D............ 9'5" x 3'5"
Overall Height......................... 7'1"
Weight, Approximately.................. 4800 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $5,950.00
