10 pc sma female connector nut bulkhead crimp RG316/174

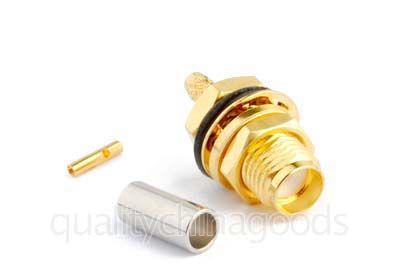

10 pcs SMA female bulkhead connector crimp for RG316,RG174
Temp.range...................-65 +165 (PE Cable - +85)
Vibration...................... MIL-STD-202,Method 213
Impedanec......................50
Frequency Range..............DC 12.4GHz(0 18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Center Contact................ 3m
Outer Contact................. 2m
Insulation resistance....... 5000 m
Insertion loss ................ 0.15 dB/6GHz
VSWR Straight............... 1.10+0.002f
Right angle ............. 1.20+0.003f
Durability(mating)........... 500 (cycles)
inner conductor beryllium or tin brass goldplated
crimping suite copper alloy nicked or goldplated
o-ring sealing 6146 silastic
